Engine Power

47 HP

Drive

2WD | 4WD

Transmission

12F + 3R,
Fully Constant Mesh

image product 0
image product 1
image product 2
image product 3
image product 4
image product
image product
image product
image product
image product

Disclaimer: These photographs are for illustrative purposes only and may be subject to change.

The Farmtrac 47 PROMAXX is a robust tractor boasting a 47 HP engine, designed with a heavy-duty lift capable of handling up to 2000 kg. It is equipped with a stay bar and an innovative SmartPro lift switch, making it ideal for a variety of applications. Furthermore, the tractor features a side shift and a 12F +3R Fully Constant Mesh Gearbox, enhanced by an advanced force feed and spray lubrication system that minimizes maintenance expenses. Elevate your agricultural and hauling operations with the 47 PROMAXX, now available at your local Farmtrac dealership.

DOWNLOAD BROCHURE

https://corpapi.escortskubota.com/images/farmtrac/promaxx/logo/pro.png
PERFOMANCE

READY TO TAKE ON ANY CHALLENGE

Optimaxx Technology engine

Optimaxx Technology engine

Maxx Torque [199 Nm]

Maxx Torque [199 Nm]

Best in Class cc - [2760 cc]

Best in Class cc - [2760 cc]

4WD technology with sealed portal axle

4WD technology with sealed portal axle

Tractor

https://corpapi.escortskubota.com/images/farmtrac/promaxx/logo/pro.png
TECHNOLOGY

ENHANCE YOUR PRODUCTIVITY

12F +3R  Fully Constant Mesh Gearbox with Helical Gears

12F +3R Fully Constant Mesh Gearbox with Helical Gears

SmartPro Lift-Switch

SmartPro Lift-Switch

Robust EPI reduction

Robust EPI reduction

Advanced Force Feed & Spray Lubrication on gears & brakes

Advanced Force Feed & Spray Lubrication on gears & brakes

Tractor

https://corpapi.escortskubota.com/images/farmtrac/promaxx/logo/pro.png
STYLE

THE SYMBOL OF PRIDE & STATUS

PROMAXX - Robust Build & Look

PROMAXX - Robust Build & Look

Single Piece-Bonnet Opening

Single Piece-Bonnet Opening

 LED Plough Lamp & Tail Light

LED Plough Lamp & Tail Light

Bigger & Premium Gear Knob With Chrome Finishing

Bigger & Premium Gear Knob With Chrome Finishing

Tractor

https://corpapi.escortskubota.com/images/farmtrac/promaxx/logo/max.png
COMFORT

MORE WORK, LESS FATIGUE

MaxxSpace Platform with Premium Floor Mat

MaxxSpace Platform with Premium Floor Mat

Side Shift

Side Shift

Maxx- Heat Guard with Hot Air Deflector

Maxx- Heat Guard with Hot Air Deflector

SPT (Soft Press Technology) Pedals

SPT (Soft Press Technology) Pedals

Tractor

https://corpapi.escortskubota.com/images/farmtrac/promaxx/logo/max.png
MULTI APPLICATION SUITABILITY

MAXIMIZE YOUR EARNING

Elevated PTO Height

Elevated PTO Height

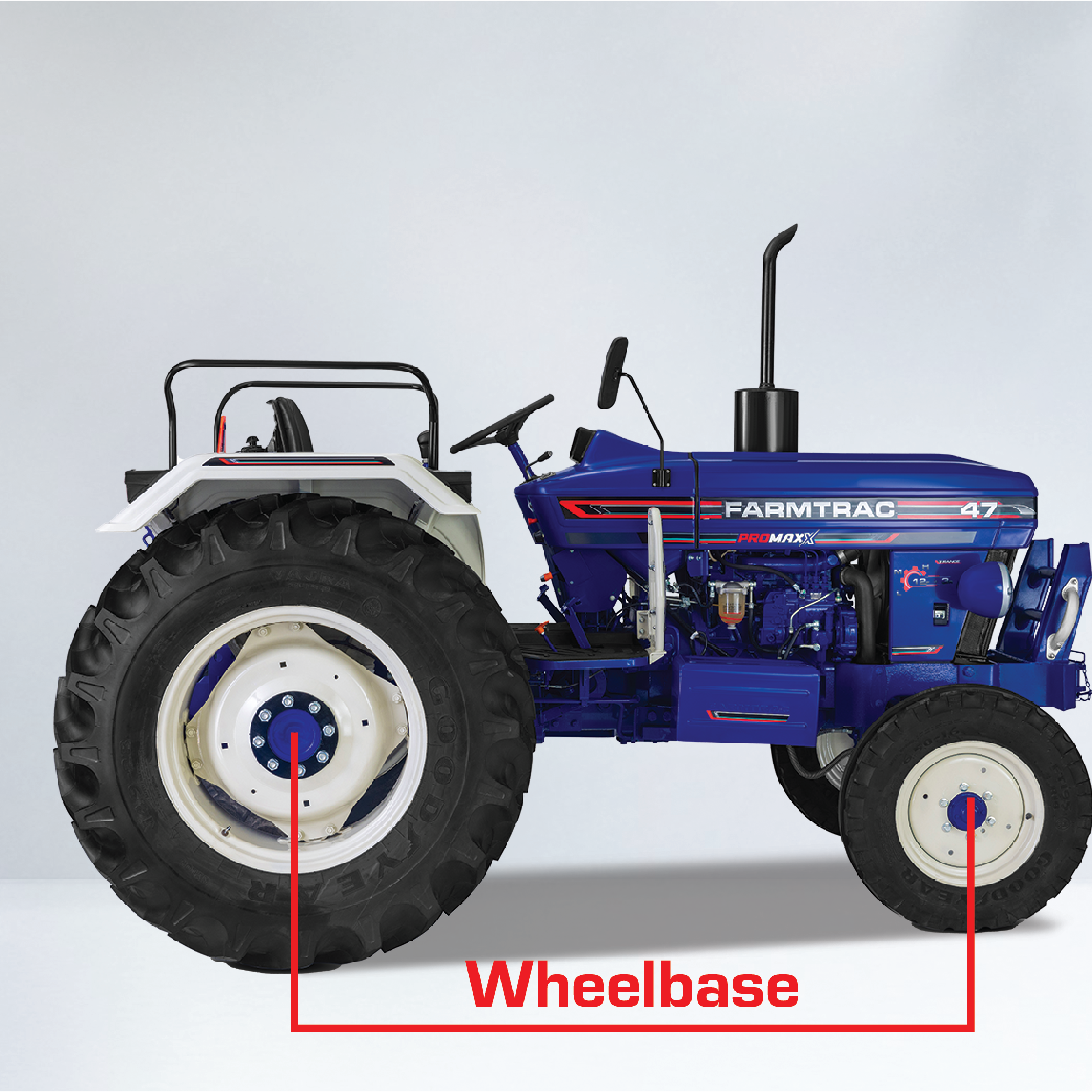

 Best in Class - Bigger Wheelbase

Best in Class - Bigger Wheelbase

 1st & Reverse - Inline Gear

1st & Reverse - Inline Gear

Heavy Duty Rear Tow Hook With 12 Settings

Heavy Duty Rear Tow Hook With 12 Settings

Tractor

https://corpapi.escortskubota.com/images/farmtrac/promaxx/logo/max.png
UTILITY FEATURES

BRING CUSTOMER DELIGHT

Service Interval - 500 Hrs

Service Interval - 500 Hrs

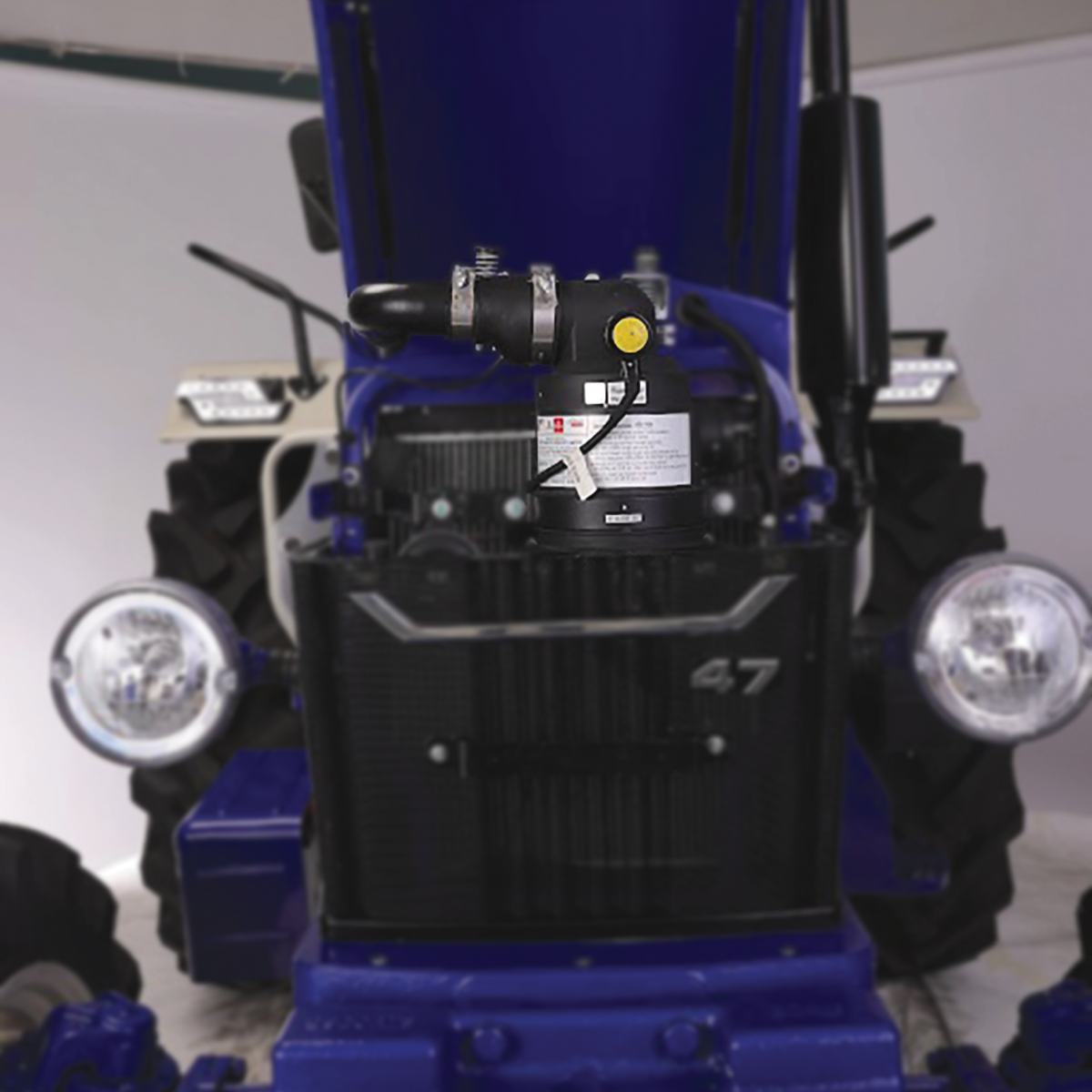

Dry Type Air Cleaner with Clog Indicator

Dry Type Air Cleaner with Clog Indicator

 Cassette Type Sealed in PTO & Rear Axle

Cassette Type Sealed in PTO & Rear Axle

 Sealed - Clutch Housing with Self-Lubricating Bush

Sealed - Clutch Housing with Self-Lubricating Bush

Tractor

FARMTRAC

47 PROMAXX

specification-atom-26
  • Engine Power

    35.04 kW (47 HP)

  • Maximum Torque

    199 Nm

  • Gearbox Type

    12F + 3R,
    Fully Constant Mesh

  • No. of Cylinders

    3

  • Lift Capacity

    2000 Kg

  • Rear Tyre Size

    37.84 cm x 71.12 cm
    (14.9 inch x 28 inch)

OTHER SPECIFICATIONS

  • Transmission

    Clutch
    2WD | 4WD
    Dual Clutch | Double Clutch with ITPO Lever
  • Fuel Tank

    Capacity50 litres
  • Brake Types

    BrakesDisc type, Oil Immersed Brakes (OIB)
  • Steering Type

    Steering
    2WD | 4WD
    Balanced Power Steering
  • PTO Type

    PTOStandard 540 with MRPTO
  • Tyres

  • Front Tyre Size
    2WD | 4WD
    16.51 cm x 40.64 cm (6.5 inch x 16 inch) | 21.08 cm x 50.8 cm (8.3 inch x 20 inch)
  • Rear Tyre Size
    2WD | 4WD
    37.84 cm x 71.12 cm (14.9 inch x 28 inch)
logo atom

DISC HARROW

The Framtrac 47 Promaxx is a powerful 47 HP tractor is ideal for efficient soil preparation with a disc harrow. Its higher PTO power at operating RPM ensures better performance, even in tough soil conditions. The high ground clearance allows smooth operation in uneven fields, preventing damage to the implement. With 4 holes on the rocker arm , the tractor provides better sensing and control over the harrow's depth. Additionally, the stay bar enhances stability, ensuring precise and uniform tillage.

logo atom

REVERSIBLE MB PLOUGH

The Farmtrac 47 Promaxx is a powerful 47 HP tractor. It can effortlessly operate heavy-duty MB Plough with Advanced Smart1Pro Lift for uniform depth sensing & and optimal stability. It has hydraulically operated double acting spool valve with a auxiliary lever to ensure easy MB Plough operation. Additionally, it comes with robust EPI backend to distribute load at rear end and 12+3 Multi speed options for more productivity.

logo atom

FRONT LOADER

The 47 Promaxx tractor works great with a Front Loader. It can lift 350-400 kg for lighter jobs and 650-700 kg for heavier ones. This powerful pairing makes material handling and transport more efficient, boosting productivity across various tasks.

logo atom

FRONT DOZER

The Farmtrac 47 Promaxx is a robust tractor with 47 HP. It is designed with a resilient FAS that provides the essential strength required to support high loads. The balanced power steering ensures smooth maneuverability, even with a loaded blade. Additionally, the tractor is equipped with a sturdy 4WD axle, ensuring stability and durability across uneven fields. This powerful combination meets the tough demands of modern agriculture and construction, offering better efficiency and performance for heavy-duty tasks.
