39
Engine Power
39 HP Cat.
Drive
2WD
Transmission
12F + 3R,
Fully Constant Mesh
Engine Power
39 HP Cat.
Drive
2WD
Transmission
12F + 3R,
Fully Constant Mesh
Disclaimer: These photographs are for illustrative purposes only and may be subject to change.

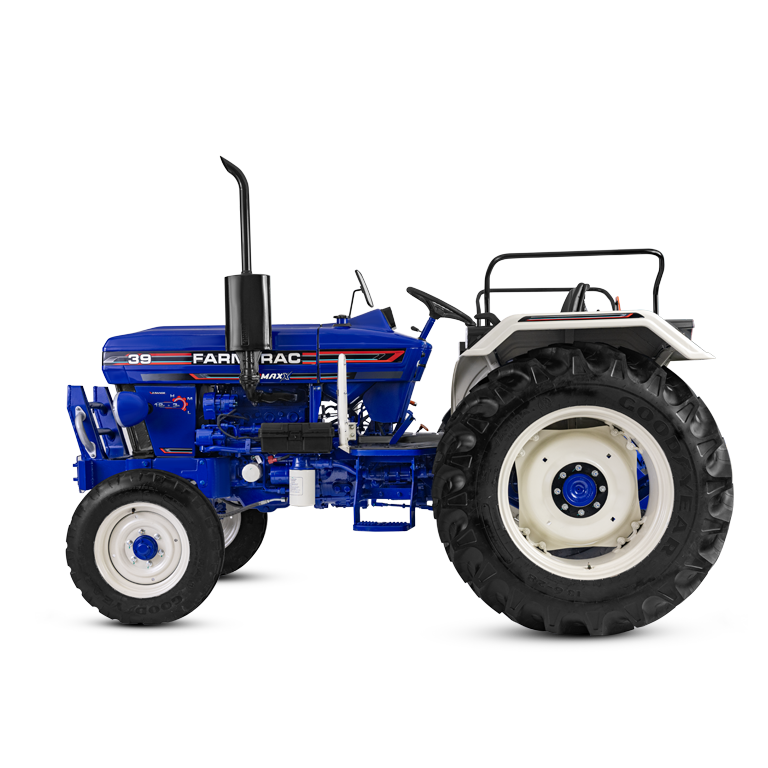

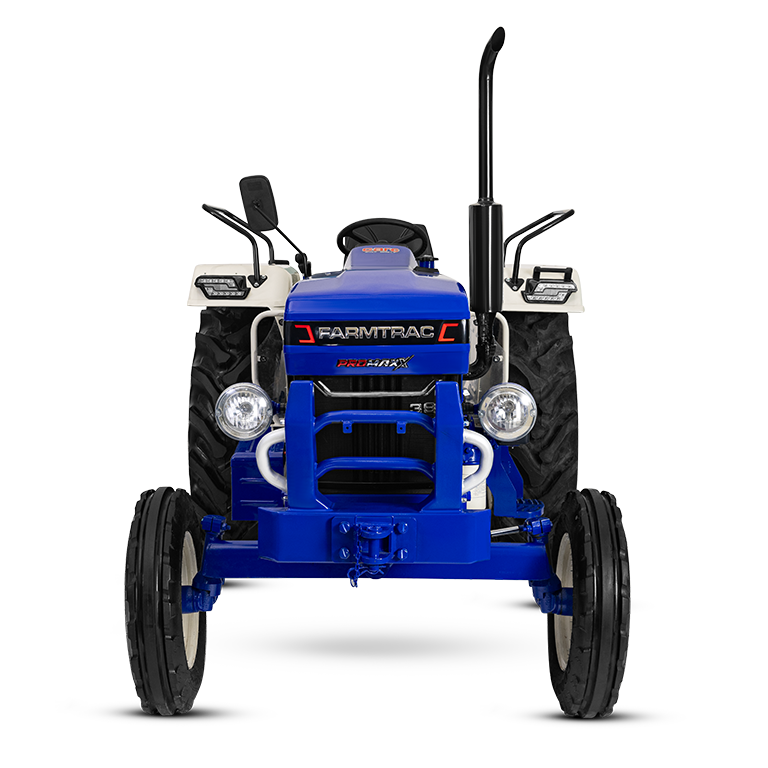

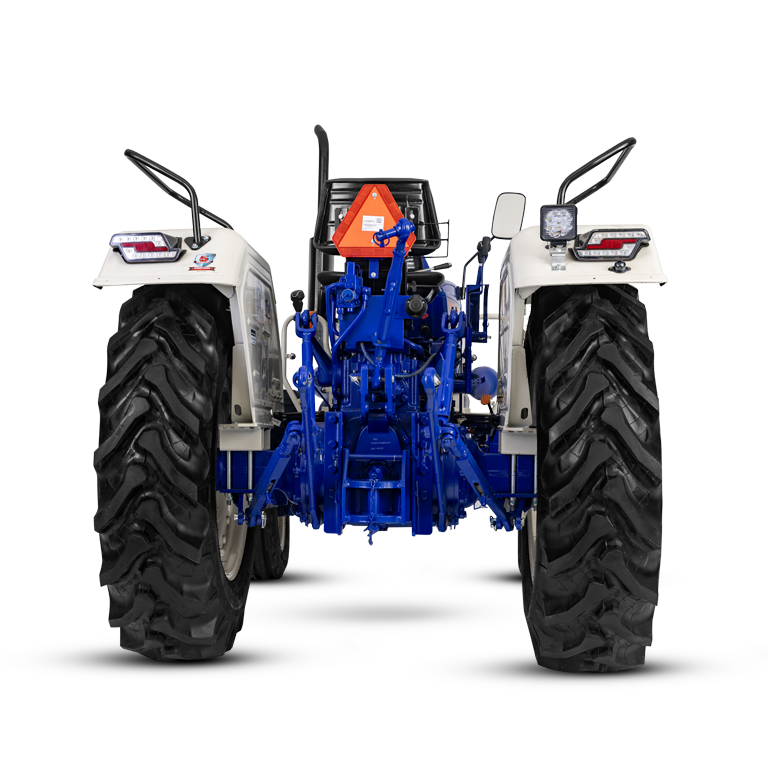

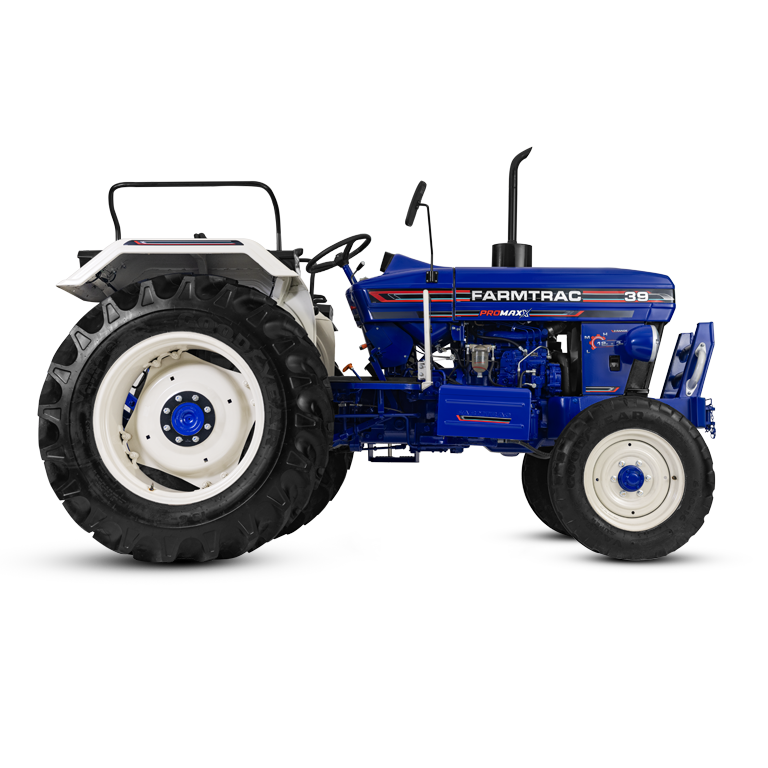

The Farmtrac 39 PROMAXX is a versatile tractor with a power output of 39 HP cat., specifically designed to meet a variety of farming needs. The tractor incorporates Optimaxx Engine Technology, which optimizes fuel consumption while enhancing power output. It is equipped with 12F +3R Fully Constant Mesh Gearbox, giving multiple speeds for various applications. Additionally, it boasts a high lift capacity of 1800 kg, a fully constant mesh gearbox, and a robust EPI backend, ensuring superior performance in challenging fields during extended working hours. Visit your nearest Farmtrac tractor dealership to make a smart upgrade today.
PERFORMANCE
READY TO TAKE ON ANY CHALLENGE
Optimaxx Technology engine
![Maxx Torque [162 Nm]](/_next/image?url=https%3A%2F%2Fcorpapi.escortskubota.com%2Fimages%2Ffarmtrac%2Fpromaxx%2Fpro-performance%2FMaxx-Torque.png&w=3840&q=75)
Maxx Torque [162 Nm]
![Best in Class cc - [2340 cc]](/_next/image?url=https%3A%2F%2Fcorpapi.escortskubota.com%2Fimages%2Ffarmtrac%2Fpromaxx%2Fpro-performance%2FBest-in-class-engine.png&w=3840&q=75)
Best in Class cc - [2340 cc]
![MAXX PTO Power with Optimal PTO RPM [540@1810]](/_next/image?url=https%3A%2F%2Fcorpapi.escortskubota.com%2Fimages%2Ffarmtrac%2Fpromaxx%2Fpro-performance%2Fimages5.JPG&w=3840&q=75)
MAXX PTO Power with Optimal PTO RPM [540@1810]
TECHNOLOGY
ENHANCE YOUR PRODUCTIVITY
12F +3R Fully Constant Mesh Gearbox with Helical Gears
![Heavy Duty Lift Capacity [1800 kg]](/_next/image?url=https%3A%2F%2Fcorpapi.escortskubota.com%2Fimages%2Ffarmtrac%2Fpromaxx%2Fpro-technology%2Fmulti-reverse.png&w=3840&q=75)
Heavy Duty Lift Capacity [1800 kg]
Robust EPI reduction
Advanced Force Feed & Spray Lubrication on gears & brakes
STYLE
THE SYMBOL OF PRIDE & STATUS
PROMAXX - Robust Build & Look
Single Piece-Bonnet Opening
LED Plough Lamp & Tail Light
Bigger & Premium Gear Knob With Chrome Finishing
COMFORT
MORE WORK, LESS FATIGUE
MaxxSpace Platform with Premium Floor Mat
Side Shift
Maxx- Heat Guard with Hot Air Deflector
SPT (Soft Press Technology) Pedals
APPLICATION SUITABILITY
MAXIMIZE YOUR EARNING
Elevated PTO Height
Best in Class - Bigger Wheelbase
1st & Reverse - Inline Gear
Heavy Duty Rear Tow Hook With 12 Settings
UTILITY FEATURES
BRING CUSTOMER DELIGHT
Service Interval - 500 Hrs
Dry Type Air Cleaner with Clog Indicator
Cassette Type Sealed in PTO & Rear Axle
Sealed - Clutch Housing with Self-Lubricating Bush
FARMTRAC
39 PROMAXX
Engine Power
29.08 kW Cat. (39 HP Cat.)
Maximum Torque
162 Nm
Gearbox Type
12F + 3R,
Fully Constant Mesh
No. of Cylinders
3
Lift Capacity
1800 Kg
Rear Tyre Size
34.54 cm x 71.12 cm
(13.6 inch x 28 inch)
OTHER SPECIFICATIONS
Transmission
Clutch Single Cluch* | Dual Clutch (*Optional Variant) Fuel Tank
Capacity 50 litres Brake Types
Brakes Disc type, Oil Immersed Brakes(OIB) Steering Type
Steering Sinlge Acting - Power Steering PTO Type
PTO Standard 540 with MRPTO Tyres
Front Tyre Size 15.24 cm x 40.64 cm (6 inch x 16 inch) Rear Tyre Size 34.54 cm x 71.12 cm (13.6 inch x 28 inch)
SEED CUM FERTILIZER DRILL
The Farmtrac 39 Promaxx is designed with the Advanced Smart1Pro lift, which boasts an impressive lifting capacity of 1800 kg. This model features best-in-class ADDC sensing technology, ensuring optimal performance. Additionally, the heavy-duty stay bar provides enhanced stability for your equipment.
SPRAYER
The Farmtrac 39 Promaxx tractor is a 39 HP cat. tractor with Optimaxx Technology Engine. It has Advanced Smart1Pro lift, which features heavy 1800 kg lift capacity & both side adjustable lift rods for easy implement attachment.
