35
Engine Power
36 HP Cat.
Drive
4WD
Torque
108 Nm
Engine Power
36 HP Cat.
Drive
4WD
Torque
108 Nm
Disclaimer: These photographs are for illustrative purposes only and may be subject to change.

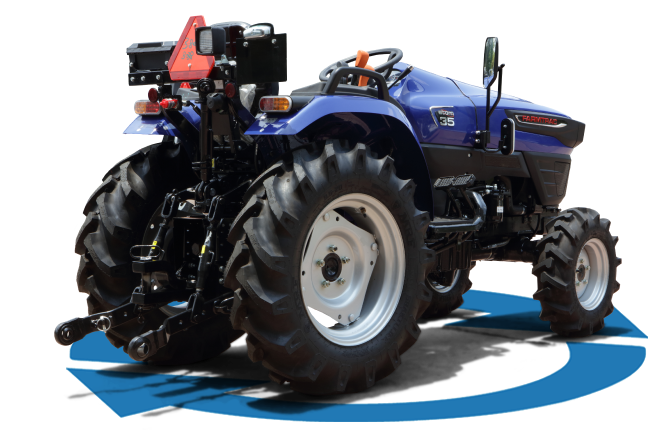

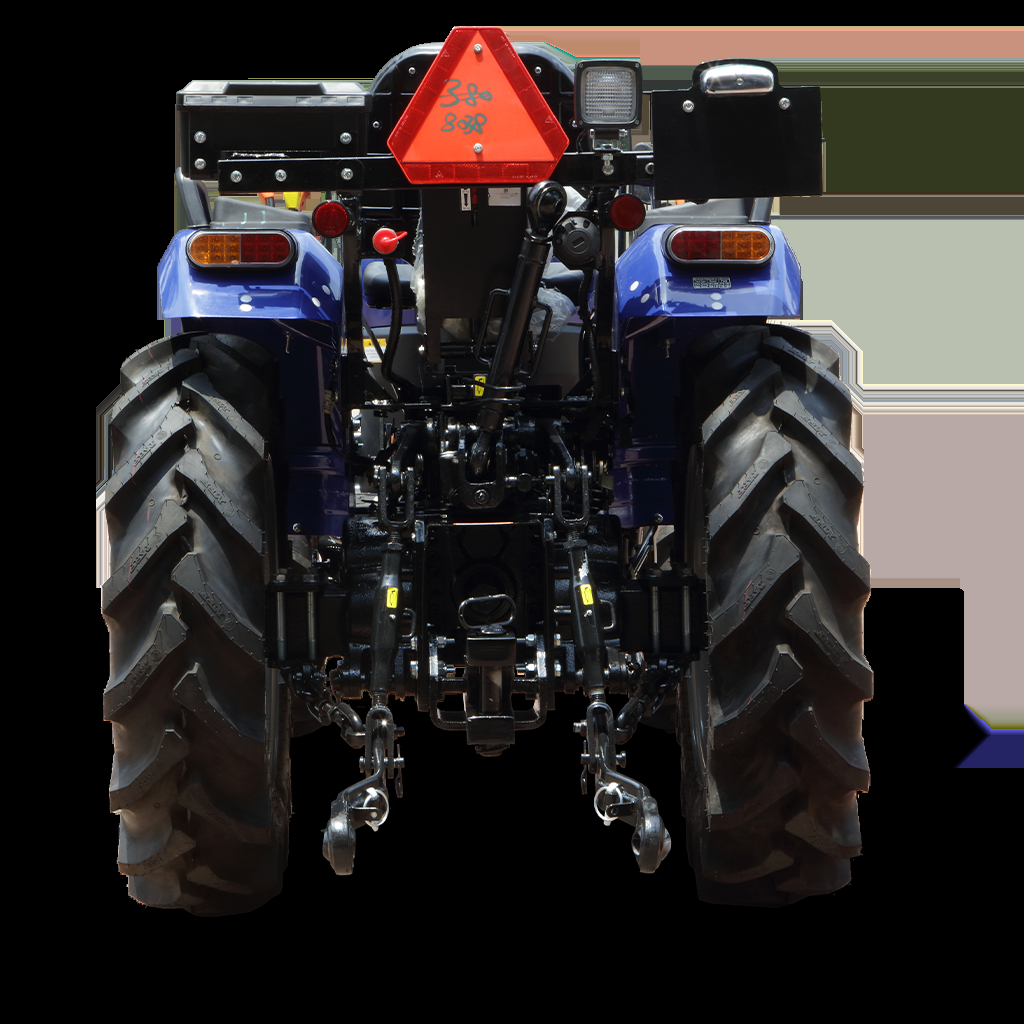

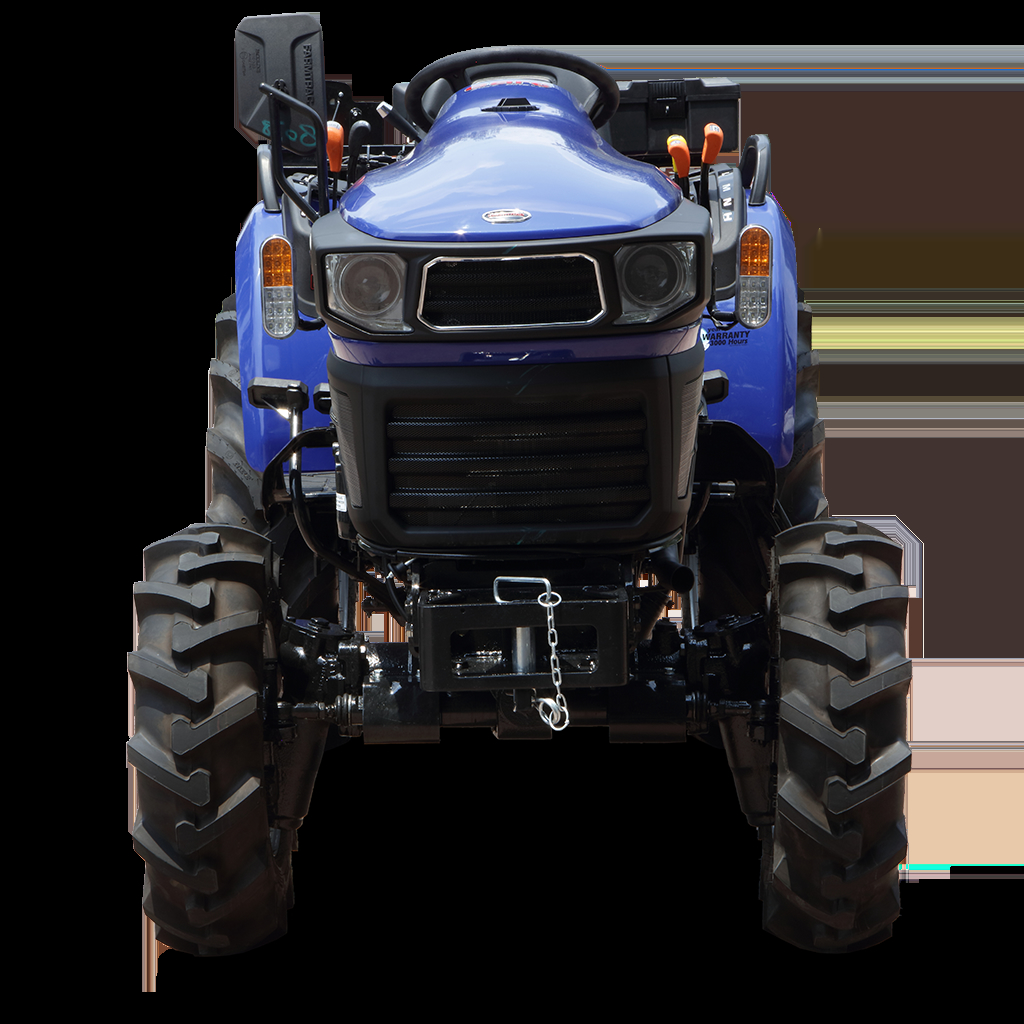

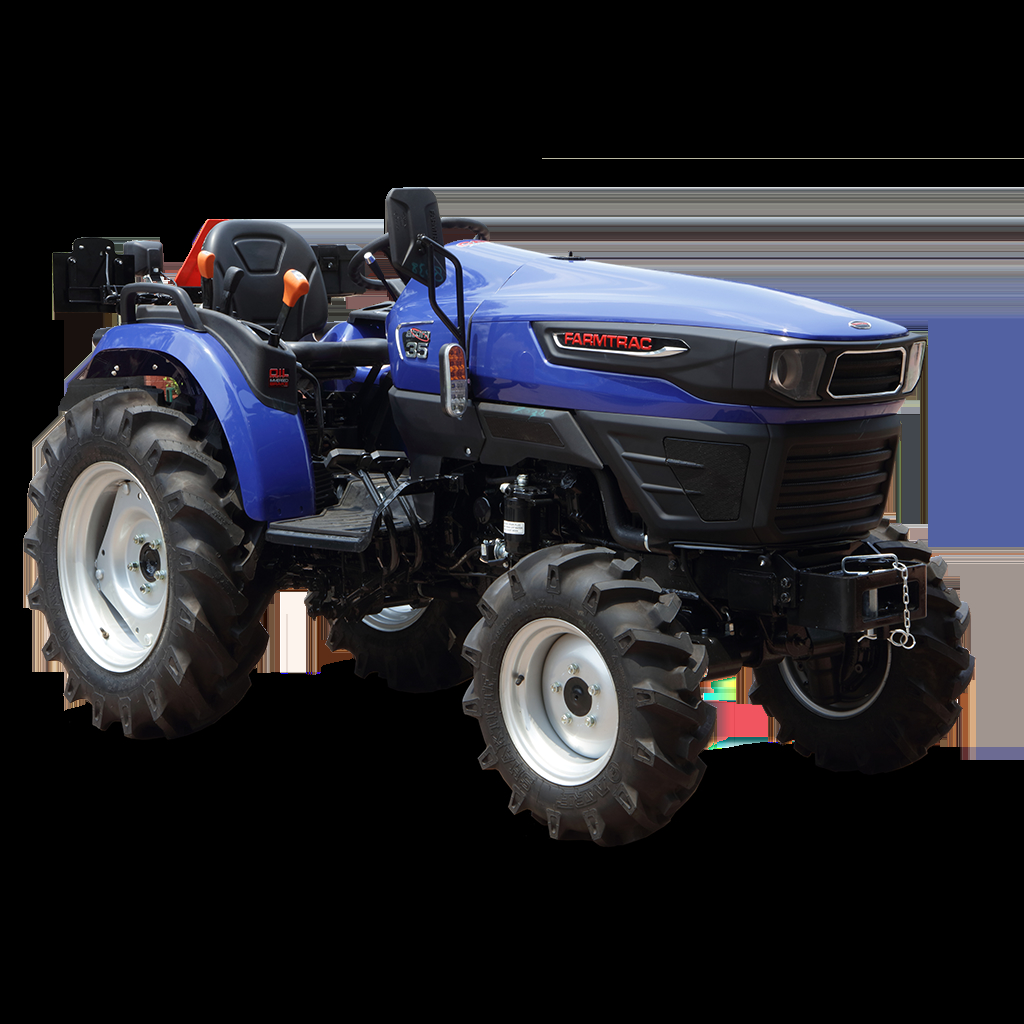

The Farmtrac 35 atom, is a powerful 4-cylinder engine with a 9+3 constant mesh gearbox system for powerful and smooth operation. This 36 HP Category compact tractor, with powerful engine comes with 27.1 HP PTO power, 1000 Kg heavy lift & 2.85 m turning radius makes it perfect option for heavy duty implements. For those seeking a small tractor with big capabilities, the Farmtrac 35 atom ensures efficiency with its advanced technology and strong build.
4 Wheel Drive
Farmtrac 35 atom is an impactful 4-wheel drive tractor which is ideal for Orchard and row-crop farming. With more traction and power distributed on 4 wheels Farmtrac 35 atom gives the perfect power and balance to run the tractor with ease.

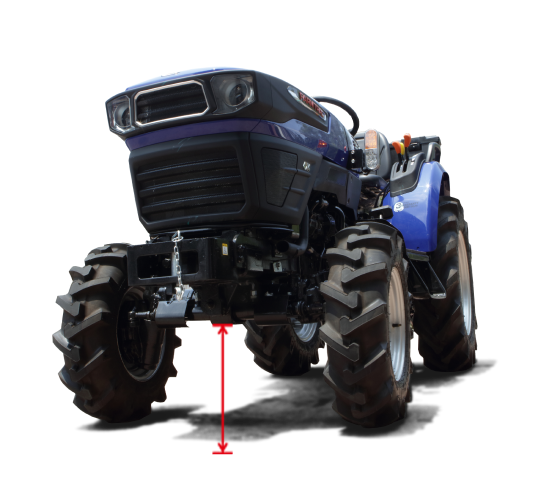

High Ground Clearance
Farmtrac 35 atom is a tall design tractor with ground clearance of 305 mm. This helps in driving tractor easily even in rough patchy terrains without harming tractor and also prevents crops from damaging.
Lowest Turning Radius
Farmtrac 35 atom tractor has perfect dimensions for orchard and row-crop farming. With a 2.85 m turning radius, it is easy to manoeuvre tractor without harming crops.
FARMTRAC
35 atom
Engine Power
26.84 kW Cat. (36 HP Cat.)
Maximum Torque
108 Nm
Gearbox Type
9 + 3 Constant Mesh
Gear Box
No. of Cylinders
4
Lift Capacity
1000 Kg
Rear Tyre Size
9.5 X 20 Inch
OTHER SPECIFICATIONS
Transmission
Clutch Single Fuel Tank
Capacity 24 litres Brake Types
Brakes Oil immersed Steering Type
Steering Power PTO Type
PTO Standard 540/540 E Tyres
Front Tyre Size 6 x 12 inch (15.24 x 30.48 cm) Rear Tyre Size 9.5 x 20 inch (24.13 x 50.8 cm)

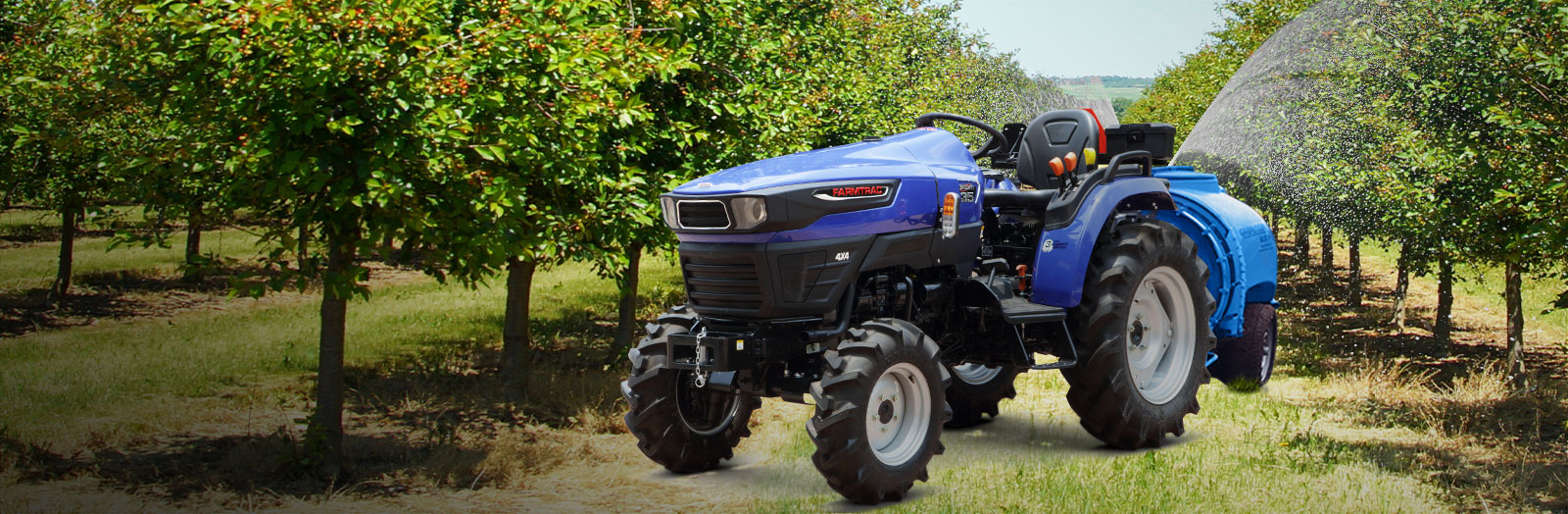

ORCHARD SPRAYER
The Farmtrac 35 atom operates the EKL Farmpower Mist Trac 200, EKL Farmpower Mist Trac 600 (Single Fan) and EKL Farmpower Mist Trac 600 (Double Fan) sprayers with exceptional PTO power, making it versatile for various spraying tasks.

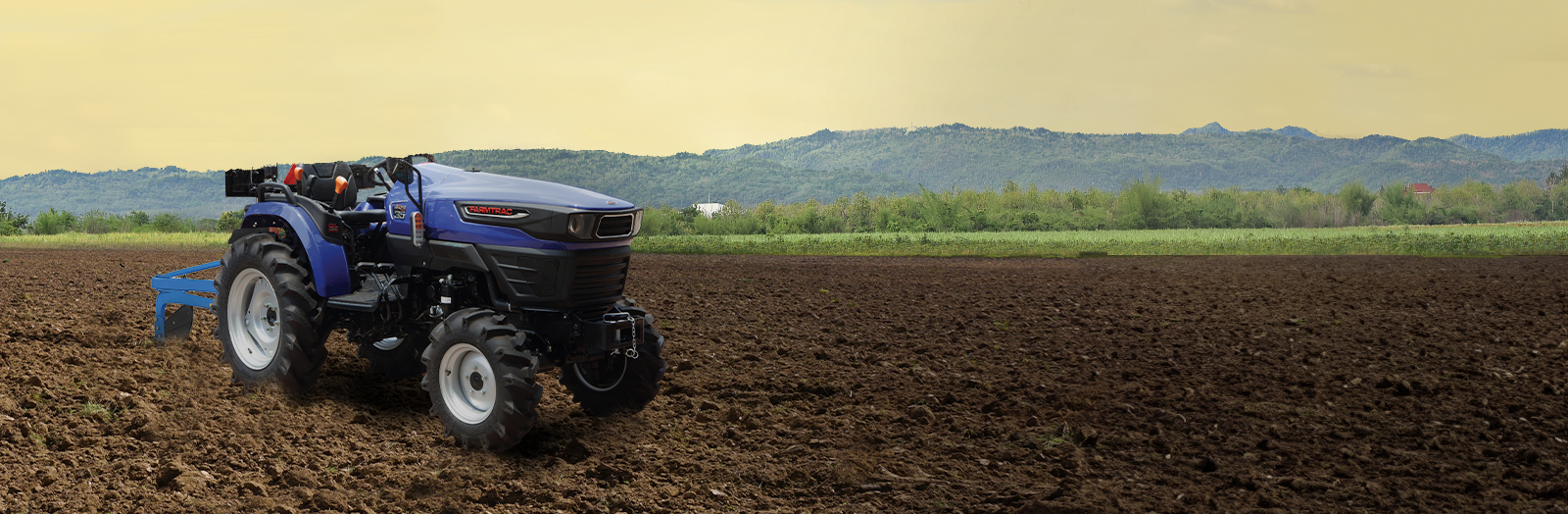

2 MB PLOUGH
The Farmtrac 35 atom is compatible with a 2 Bottom Mechanical MB Plough and gives uniform depth and tilling with the help of an Automatic Depth and Draft Control (ADDC) hydraulic system.
ROTAVATOR
The Farmtrac 35 atom is compatible with rotavators of sizes 3.5ft and 4ft and provides uniform depth and tilling with the help of an Automatic Depth and Draft Control (ADDC) hydraulic system.
OTHER ATOM MODELS
FARMTRAC
26 atom
19.38 kW (26 HP Category)
FARMTRAC
30 atom
22.37 kW (30 HP Category)
